Category	Video
Video Types Supported	XVGA
Video Processor	Tseng Labs ET4000
Highest Resolution Supported	1024 x 768
Data Bus Type	32-bit EISA
Memory Type	DRAM
Maximum Onboard Memory	1024KB

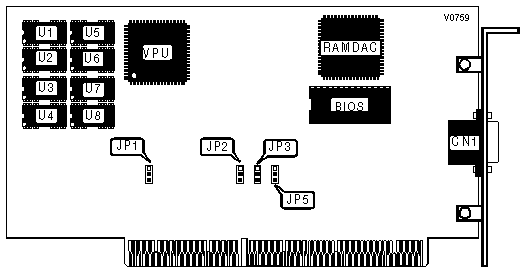

CONNECTIONS
Purpose	Location
15-pin analog video port	CN1

INTERRUPT IRQ2 SELECT
Setting		JP1
»	Disabled	Pins 2 & 3 closed
	Enabled	Pins 1 & 2 closed

WAIT STATE SELECTION
Memory Wait State		I/O Wait State	JP2	JP3
	1	3	Pins 1 & 2 closed	Pins 1 & 2 closed
»	2	4	Pins 2 & 3 closed	Pins 1 & 2 closed
	3	3	Pins 1 & 2 closed	Pins 2 & 3 closed
	4	4	Pins 2 & 3 closed	Pins 2 & 3 closed

PROCESSOR SELECT
Setting		JP5
»	80386DX	Pins 1 & 2 closed
	80486DX,SX	Pins 2 & 3 closed

DRAM CONFIGURATION
Size	U1-U4	U5-U8
512KB	(4) 256K x 4	NONE
1024KB	(4) 256K x 4	(4) 256K x 4
