Category	Video
Video Types Supported	XVGA
Video Processor	Trident Microsystems, Inc.
Highest Resolution Supported	1024 x 768
Data Bus Type	16-bit ISA
Memory Type	DRAM
Maximum Onboard Memory	1MB

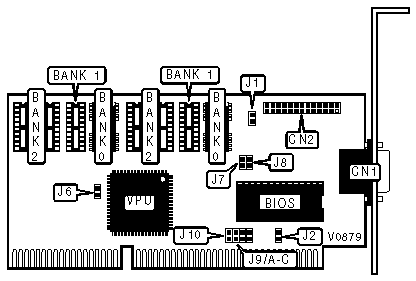

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	VESA feature connector	CN2

ZERO WAIT STATE
First Stage		Second Stage	J1	J2
»	Enabled	Enabled	Open	Closed
	Disabled	Enabled	Open	Open
	Disabled	Disabled	Closed	Open

SCAN RATE
Setting		J7
»	Interlaced mode	Closed
	Non-interlaced, 48.7KHz mode	Open

8/16-BIT BIOS AUTODETECT FUNCTION
Setting		J8
»	Enabled	Open
	Disabled (boot-up in default BIOS setting)	Closed

8/16-BIT BUS SLOT INSTALLATION
Setting		J6	J9/jumper A	J9/jumper B	J9/jumper C	J10
»	16-bit slot	Open	Open	Open	Open	Closed
	8-bit slot	Closed	Closed	Closed	Closed	Open

DRAM CONFIGURATION
Size		Bank 0	Bank 1	Bank 2
»	256KB	(2) 256K x 4	None	None
	512KB	(2) 256K x 4	(2) 256K x 4	None
	1MB	(2) 256K x 4	(2) 256K x 4	(4) 256K x 4
