Category	Video
Video Types Supported	XVGA
Video Processor	Tseng Labs ET4000-W32P
Highest Resolution Supported	1280 x 1024
Data Bus Type	32-bit PCI
Memory Type	DRAM
Maximum Onboard Memory	2MB

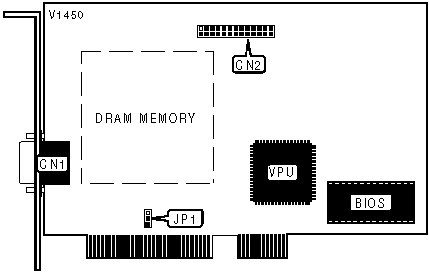

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	VGA feature connector	CN2

INTERRUPT CONFIGURATION
IRQ 2/9		JP1
»	Disabled	Pins 2 & 3 closed
	Enabled	Pins 1 & 2 closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	(4) 256K x 8	NONE
2MB	(4) 256K x 8	(4) 256K x 8
Note: DRAM chip size can also be 256K x 4 depending on the ET4000/W32P PCI version you have. Relative location of Bank 0 & Bank 1 is unidentified by the manufacturer.
