Category	Video
Video Types Supported	XVGA
Video Processor	S3 Trio64 V+
Highest Resolution Supported	1600 x 1200
Data Bus Type	32-bit PCI
Memory Type	DRAM
Maximum Onboard Memory	4MB

CONNECTIONS

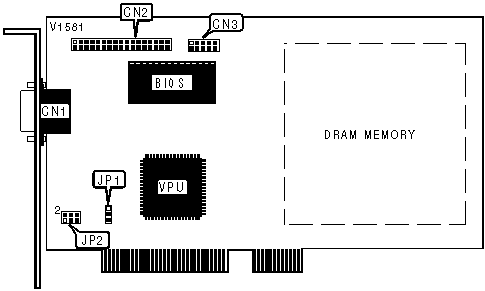

Purpose	Location	Purpose	Location
15-pin analog video port	CN1	10-pin connector	CN3
VGA feature connector/local peripheral bus connector	CN2

INTERRUPT CONFIGURATION
IRQ 2/9		JP1
»	Disabled	Pins 2 & 3 closed
	Enabled	Pins 1 & 2 closed

DDC FUNCTION CONFIGURATION
Setting		JP2
»	Disabled	Pins 3 & 5, 4 & 6 closed
	Enabled	Pins 1 & 3, 2 & 4 closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2
1MB	(2) 256K x 16	NONE	NONE
2MB	(2) 256K x 16	(2) 256K x 16	NONE
4MB	(2) 256K x 16	(2) 256K x 16	(4) 256K x 16
Note: Relative location of Bank 0, Bank 1 & Bank 2 is unidentified by the manufacturer.
