Card Type	Video card
Video Chip Set	Tseng Labs
Highest Resolution Supported	1280 x 1024
Maximum Video Memory	2MB RAM (type unidentified)
Data Bus	32-bit VESA Local Bus
Video Types Supported	XVGA

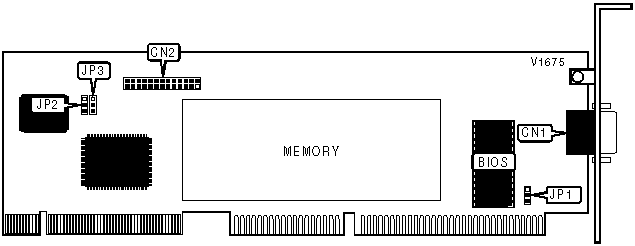

CONNECTIONS
Function	Label	Function	Label
15-pin analog video port	CN1	Feature connector	CN2

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	IRQ2 disabled	JP1	Pins 2 & 3 closed
	IRQ2 enabled	JP1	Pins 1 & 2 closed
»	DAC snoop enabled	JP2	Pins 2 & 3 closed
	DAC snoop disabled	JP2	Pins 1 & 2 closed
»	Delay command option enabled	JP3	Pins 2 & 3 closed
	Delay command option disabled	JP3	Pins 1 & 2 closed

VIDEO MEMORY CONFIGURATION

Note:The size and configuration of the RAM is unidentified.
