Category	Video
Video Types Supported	XVGA
Video Processor	S3, Inc.
Highest Resolution Supported	1600 x 1200
Data Bus Type	32-bit PCI
Memory Type	DRAM
Maximum Onboard Memory	2MB

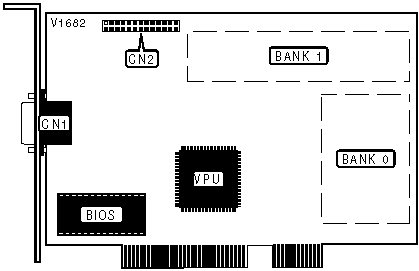

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	VESA feature connector	CN2

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	(8) 256K x 4	NONE
2MB	(8) 256K x 4	(8) 256K x 4
Note: Memory configuration of Bank 0 & Bank 1 is unidentified by the manufacturer.
