Category	Video
Video Types Supported	XVGA
Video Processor	S3, Inc.
Highest Resolution Supported	1600 x 1200
Data Bus Type	32-bit PCI
Memory Type	VRAM
Maximum Onboard Memory	4MB

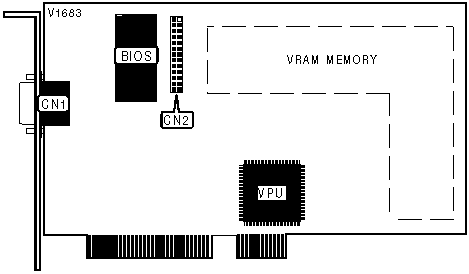

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	VESA feature connector	CN2

VRAM CONFIGURATION
Size	Bank 0	Bank 1
2MB	(8) 256K x 8	NONE
4MB	(8) 256K x 8	(8) 256K x 8
Note: Relative location of Bank 0 Bank is unidentified by the manufacturer.
