Card Type	Video capture card
Video Chip Set	S3
Highest Resolution Supported	Unidentified (Note: 64-bit graphics technology)
Maximum Video Memory	DRAM
Data Bus	32-bit PCI
Video Types Supported	XVGA

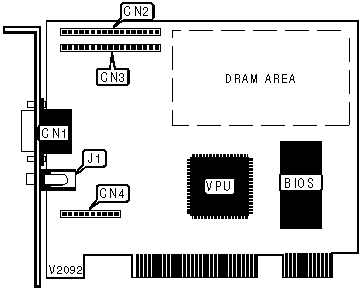

CONNECTIONS
Function	Label	Function	Label
15-pin analog video port	CN1	Local peripheral bus connector	CN4
Local peripheral bus connector	CN2	Audio out (MPEG video)	J1
Local peripheral bus connector	CN3

DRAM CONFIGURATION

Note: The exact amount & configuration of DRAM memory is unidentified.
