Card Type	Video card
Video Chip Set	S3
Highest Resolution Supported	1600 x 1200
Maximum Video Memory	4MB DRAM
Data Bus	PCI
Video Types Supported	XVGA

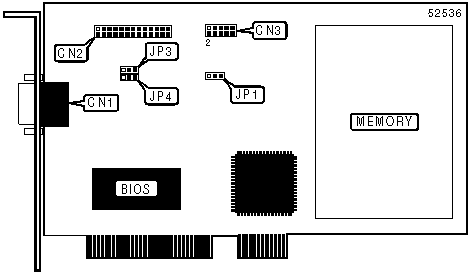

CONNECTIONS
Function	Label	Function	Label
15-pin analog video connector	CN1	Unidentified	CN3
Feature connector	CN2

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	IRQ2 enabled (MPEG daughter board on the 765 VGA card)	JP1	Pins 1 & 2 closed
	IRQ2 disabled	JP1	Pins 2 & 3 closed
»	DDC enabled	JP2	Pins 1 & 3, 2 & 4 closed
	DDC disabled	JP2	Pins 3 & 5, 4 & 6 closed
»	BIOS enabled	JP3	Pins 2 & 3 closed
	BIOS disabled	JP3	Pins 1 & 2 closed
»	Factory configured - do not alter	JP4	Pins 2 & 3 closed

DRAM CONFIGURATION

Note: The configuration of the DRAM is unavailable
