DIAMOND MULTIMEDIA SYSTEMS, INC.
VIDEO CRUNCH IT 2000
|
Card Type |
Video capture board |
|
Video Chip Set |
Zoran |
|
Maximum Video Memory |
Unidentified |
|
Video Types Supported |
VGA |
|
Highest Resolution Supported |
768 x 576 |
|
Data Bus |
32-bit PCI |
|

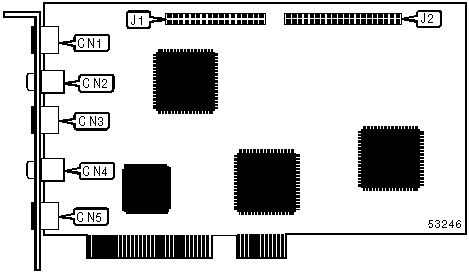

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
S-video out |
CN1 |
TV-tuner/S-video in |
CN5 |
|
Composite video out |
CN2 |
LPB connector |
J1 |
|
S-video in |
CN3 |
Proprietary connector - video pass-through |
J2 |
|
Composite video in |
CN4 | ||
