Card Type	Graphics adapter
Video Chip Set	Unidentified
Maximum Video Memory	4MB VRAM
Video Types Supported	VGA, XVGA
Highest Resolution Supported	1280 x 1024
Data Bus	32-bit PCI

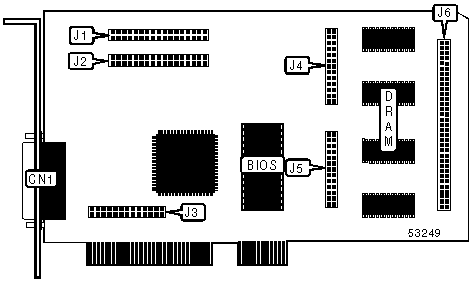

CONNECTIONS
Function	Label	Function	Label
15-pin analog video port	CN1	Header connector to daughterboard	J4
LPB connector	J1	Header connector to daughterboard	J5
LPB connector	J2	Header connector to daughterboard	J6
Unidentified connector	J3

VRAM CONFIGURATION

The Stealth 3D 3000 has 2MB of VRAM installed which can be upgraded with a memory Upgrade module containing another 2MB of VRAM. This module is installed piggyback onto the Stealth 3D 3000 board.

CONNECTIONS
Function	Label	Function	Label
Header connector to mainboard	J1	Header connector to mainboard	J3
Header connector to mainboard	J2
