Card Type	Graphics adapter
Video Chip Set	3Dlabs
Maximum Video Memory	8MB SGRAM
Video Types Supported	VGA, XVGA
Highest Resolution Supported	1280 x 1024
Data Bus	32-bit PCI

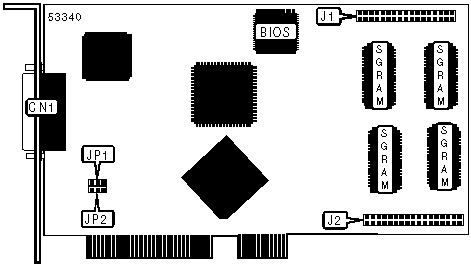

CONNECTIONS
Function	Label	Function	Label
15-pin analog video port	CN1	Header connector to daughterboard	J2
Header connector to daughterboard	J1

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Windows compatibility enabled	JP1	Pins 1 & 2 closed
	Windows compatibility disabled	JP1	Pins 2 & 3 closed
»	On-board VGA enabled	JP2	Pins 1 & 2 closed
	On-board VGA disabled	JP2	Pins 2 & 3 closed

MEMORY CONFIGURATION

The Fire GL 1000 has 4MB of SGRAM (synchronous graphics memory) installed. This can be upgraded with a memory Upgrade module containing another 4MB of SGRAM. The upgrade module is installed piggyback onto the Fire GL 1000 board.

CONNECTIONS
Function	Label	Function	Label
Header connector to mainboard	J1	Header connector to mainboard	J2
