Card Type	Video card
Video Chip Set	Tseng Labs
Maximum Video Memory	4.5MB MDRAM
Video Types Supported	VGA, XVGA
Highest Resolution Supported	1600 x 1200
Data Bus	32-bit PCI

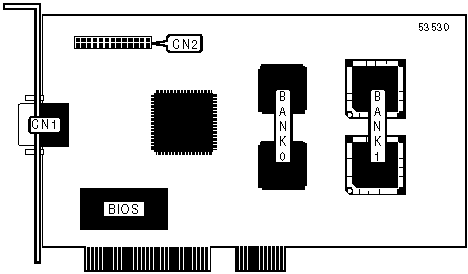

CONNECTIONS
Function	Label	Function	Label
15-pin analog video port	CN1	Feature connector	CN2

VIDEO MEMORY CONFIGURATION (MDRAM)
Size	Bank 0	Bank 1
1.5MB	1.5MB	None
2.25MB	2.25MB	None
3MB	2.25MB	.25MB
4.5MB	2.25MB	1.25MB
Note: Cards with 1.5MB MDRAM are expandable to 3MB. Cards with 2.25MB MDRAM are expandable to 4.5MB
