Card Type	Backup video storage card
Chip Set	Unidentified
Maximum Onboard Memory	Unidentified
I/O Options	Video in, video out
Hard Drives supported	None
Floppy drives supported	None
Data Bus	8-bit ISA
Card Size	Half-length

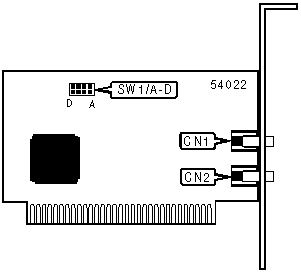

CONNECTIONS
Function	Label	Function	Label
Video out	CN1	Video in	CN2

BASE 1/O ADDRESS SELECTION
Setting	SW1/A	SW1/B	SW1/C	SW1/D
300h	Closed	Closed	Closed	Closed
304h	Closed	Closed	Closed	Open
308h	Closed	Closed	Open	Closed
30Ch	Closed	Closed	Open	Open
310h	Closed	Open	Closed	Closed
314h	Closed	Open	Closed	Open
318h	Closed	Open	Open	Closed
31Ch	Closed	Open	Open	Open
320h	Open	Closed	Closed	Closed
324h	Open	Closed	Closed	Open
328h	Open	Closed	Open	Closed
32Ch	Open	Closed	Open	Open
330h	Open	Open	Closed	Closed
334h	Open	Open	Closed	Open
338h	Open	Open	Open	Closed
33Ch	Open	Open	Open	Open
