Card Type	Video card
Video Chip Set	Alliance
Maximum Video Memory	4MB DRAM
Video Types Supported	VGA
Highest Resolution Supported	1600 x 1200
Data Bus	32-bit PCI

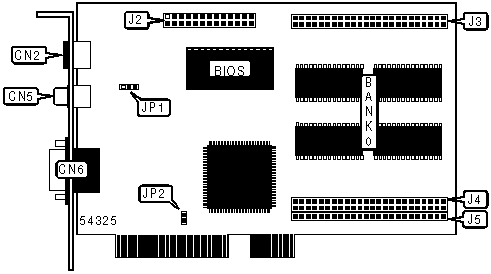

CONNECTIONS
Function	Label	Function	Label
S-Video in	CN2	THP interface	J3
RCA Video output	CN5	THP interface	J4
15-pin analog video port	CN6	THP interface	J5
Feature connector	J2

USER CONFIGURABLE SETTINGS
Function	Label	Position
NTSC TV system	JP1	Pins 1&2 closed
PAL TV system	JP1	Pins 2&3 closed
PCI interrupt enabled	JP2	Closed
PCI interrupt disabled	JP2	Open

VIDEO MEMORY CONFIGURATION (DRAM)
Size	Bank 0	Bank 1
2MB	(4) 256KB x 16	None
4MB	(4) 256KB x 16	(4) 256KB x 16
Note: 4MB is reached by adding the Flash 3D module

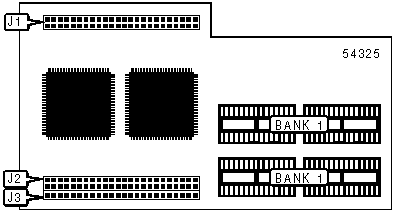

CONNECTIONS
Function	Label	Function	Label
THP Interface	J1	THP Interface	J3
THP Interface	J2
