Card Type	Video card
Video Chip Set	Unidentified
Maximum Video Memory	Unidentified
Video Types Supported	VGA, XVGA
Highest Resolution Supported	1600 x 1200
Data Bus	32-bit PCI

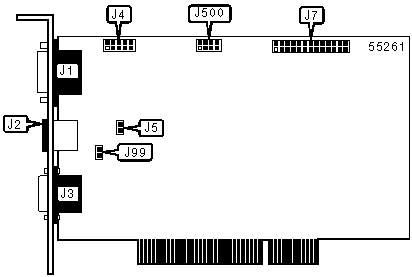

CONNECTIONS
Function	Label	Function	Label
Video in (composite)	J1	Y/C out	J4
S-video in	J2	Feature connector (VGA)	J7
15-pin analog video port	J3	Input/Output connector	J500

USER CONFIGURABLE SETTINGS
Function	Label	Setting
NTSC	J5	Open
PAL	J5	Closed
Composite video out - enabled	J99	Closed
Composite video out - disabled	J99	Open
