Category	Video
Video Types Supported	Monochrome
Video Processor	Twinhead
Highest Resolution Supported	720 x 348
Data Bus Type	8-Bit ISA
Memory Type	DRAM
Maximum Onboard Memory	64KB

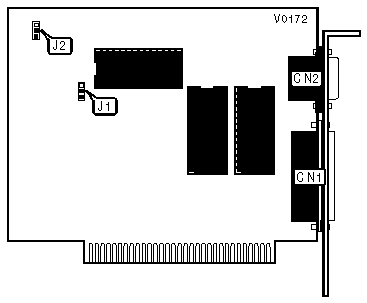

CONNECTIONS
Purpose	Location	Purpose	Location
Parallel port	CN1	15-pin analog video port	CN2

HERCULES EMULATION SELECTION
Setting		J1
»	Version 1	Pins 1 & 2 closed
	Version 2	Pins 2 & 3 closed

PARALLEL PORT CONFIGURATION
Setting		J2
»	Enabled	Pins 1 & 2 closed
	Disabled	Pins 2 & 3 closed
