Category	Video
Video Types Supported	VGA
Video Processor	Unidentified
Highest Resolution Supported	800 x 600
Data Bus Type	16-bit ISA
Memory Type	DRAM
Maximum Onboard Memory	256KB

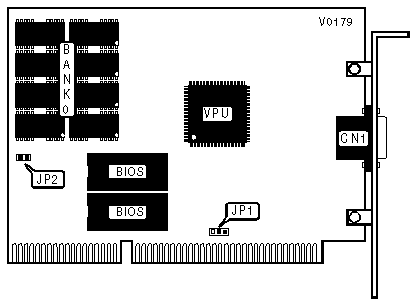

CONNECTIONS
Purpose	Location
15-pin analog video port	CN1

VIDEO INTERRUPT SELECTION
IRQ		JP1
»	2/9	Pins 1 & 2 closed
	7	Pins 2 & 3 closed

ADDRESS DECODE CONFIGURATION
Setting		JP2
»	Unlatched	Open
	Latched	Closed
