Category	Video
Video Type	XVGA
Video Processor	S3, Inc.
Highest Resolution Supported	1280 x 1024
Data Bus Type	32-bit VESA
Memory Type	DRAM
Maximum Onboard Memory	2MB

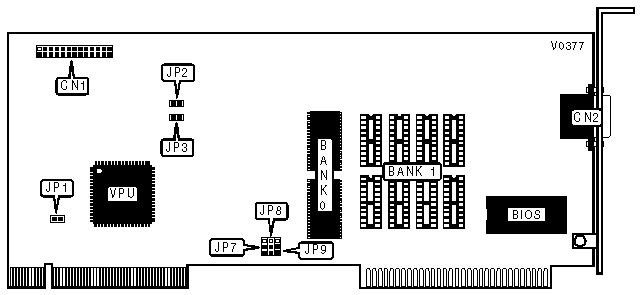

CONNECTIONS
Purpose	Location	Purpose	Location
VESA Feature connector	CN1	15-pin analog video port	CN2

INTERRUPT SELECTION
IRQ9		JP1
»	Disabled	Pins 1 & 2 open
	Enabled	Pins 1 & 2 closed

MCLK SELECTION
Setting		JP2	JP3
»	50MHz	Open	Open
	45MHz	Closed	Closed
	38MHz	Closed	Open
	52MHz	Open	Closed

REFRESH RATES
Refresh		JP7	JP8
»	56Hz Non-Interlaced	Pins 2 & 3 closed	Pins 1 2 closed
	60Hz Non-Interlaced	Pins 1 & 2 closed	Pins 2 & 3 closed
	70/72Hz Non Interlaced	Pins 1 & 2 closed	Pins 1 & 2 closed
	43Hz Interlaced	Pins 2 & 3 closed	Pins 2 & 3 closed

DAC LOCAL ACCESS
Setting	JP9
Enabled	Pins 1 & 2 closed
Disabled	Pins 2 & 3 closed

VIDEO MEMORY CONFIGURATION
Size		Bank 0	Bank 1
»	1MB	(2) 512 x 8	None
	2MB	(2) 512 x 8	(8) 256 x 4
