Category	Video
Video Types Supported	XVGA
Video Processor	S3, Inc.
Highest Resolution Supported	1280 x 1024
Data Bus Type	VESA local bus
Memory Type	DRAM
Maximum Onboard Memory	2MB

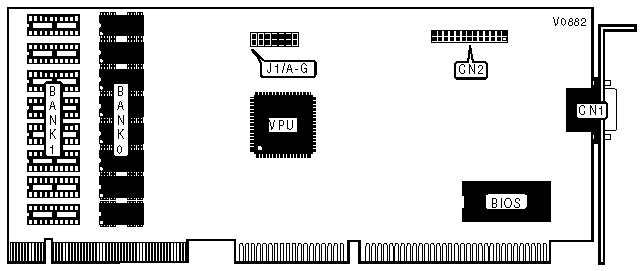

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	VESA feature connector	CN2

MONITOR SELECT - J1
Resolution/Vertical Frequency		Jumper E	Jumper F	Jumper G
»	1280 x 1024 interlaced/43Hz	Open	Closed	Open
	640 x 480 non-interlaced/60Hz	Closed	Closed	Closed
	640 x 480 non-interlaced/70Hz	Open	Closed	Closed
	800 x 600 non-interlaced/56Hz	Closed	Closed	Open
	800 x 600 non-interlaced/60Hz	Closed	Open	Closed
	800 x 600 non-interlaced/70Hz	Open	Open	Closed
	1024 x 768 non-interlaced/60Hz	Closed	Open	Open
	1024 x 768 non-interlaced/70Hz	Open	Open	Open

FACTORY CONFIGURED SETTINGS
Jumper	Setting
J1/jumper C	Closed
J1/jumper D	Closed

DRAM CONFIGURATION
Size		J1/jumper A	J1/jumper B	Bank 0	Bank 1
»	1MB	Closed	Open	(8) 256K x 4	None
	2MB	Closed	Closed	(8) 256K x 4	(8) 256K x 4
