Card Type	MPEG card
Video Chip Set	None
Highest Resolution Supported	1024 x 768
Maximum Video Memory	None
Data Bus	16-bit ISA
Video Types Supported	XVGA

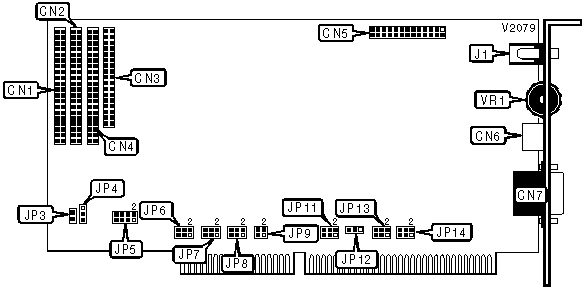

CONNECTIONS
Function	Label	Function	Label
CD-ROM interface	CN1	Loop-back connector	CN6
CD-ROM interface	CN2	15-pin analog video port	CN7
CD-ROM interface	CN3	Audio out	J1
CD-ROM interface	CN4	Volume	VR1
Feature connector	CN5
Note: The exact orientation of CN1 - CN4 is unidentified. This card supports Panasonic, Mitsumi, Sony, & IDE CD-ROM interfaces.

USER CONFIGURABLE SETTINGS
Function		Label	Position
	Factory configured - do not alter	JP2	Open
	Factory configured - do not alter	JP3	Closed
	CD-ROM interface disabled	JP5	Pins 1 & 2 open
	CD-ROM interface enabled	JP5	Pins 1 & 2 closed
	Sony/Mitsumi CD-ROM interface select	JP5	Pins 3 & 4 open
	Panasonic CD-ROM interface select	JP5	Pins 3 & 4 closed
	IDE CD-ROM interface disabled	JP5	Pins 5 & 6 open
	IDE CD-ROM interface enabled	JP5	Pins 5 & 6 closed
	IDE CD-ROM interface secondary address select	JP5	Pins 7 & 8 open
	IDE CD-ROM interface primary address select	JP5	Pins 7 & 8 closed
»	VDP address is B18h	JP12	Pins 1 & 2 closed
	VDP address is B28h	JP12	Pins 2 & 3 closed
Note: The exact location of JP2 is unidentified.

IDE CD-ROM INTERFACE CONFIGURATION
Address	IRQ	JP4
1F0h, 3F6h (Primary)	14	Pins 1 & 2 closed
170h, 376h (Secondary)	15	Pins 2 & 3 closed

DMA CHANNEL SELECTION
Channel		JP6	JP7
	5	Pins 1 & 2 closed	Pins 1 & 2 closed
»	6	Pins 3 & 4 closed	Pins 3 & 4 closed
	7	Pins 5 & 6 closed	Pins 5 & 6 closed

INTERRUPT SELECTION
IRQ		JP8
	2/9	Pins 3 & 4 closed
»	7	Pins 1 & 2 closed
	11	Pins 5 & 6 closed

ADDRESS CONFIGURATION
Board address	CD-ROM address	JP9/pins 1 & 2	JP9/pins 3 & 4
280h - 29Fh	280h - 283h	Closed	Closed
2A0h - 2AFh	2A0h - 2A3h	Open	Closed
300h - 30Fh	300h - 303h	Closed	Open
320h - 32Fh	320h - 323h	Open	Open

CD-ROM INTERRUPT SELECTION
IRQ		JP11
	4	Pins 1 & 2 closed
»	5	Pins 3 & 4 closed
	10	Pins 5 & 6 closed

CD-ROM DMA CHANNEL SELECTION
Channel	JP13	JP14
1	Pins 1 & 2 closed	Pins 1 & 2 closed
3	Pins 3 & 4 closed	Pins 3 & 4 closed
5	Pins 5 & 6 closed	Pins 5 & 6 closed
