Card Type	Video/Parallel card
Video Chip Set	Unidentified
Highest Resolution Supported	720 x 348
Maximum Video Memory	None
Data Bus	8-bit ISA
Video Types Supported	Monochrome

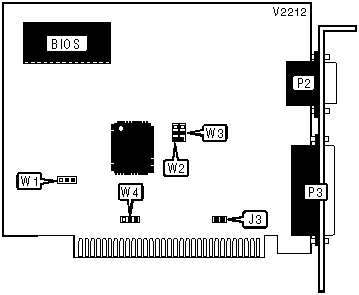

CONNECTIONS
Function	Label	Function	Label
15-pin analog video port	P2	25-pin parallel port	P3

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	PC-XT operation in slot 8 disabled	J3	Open
	PC-XT operation in slot 8 enabled	J3	Closed
»	132 column mode enabled	W1	Pins 1 & 2 closed
	132 column mode disabled	W1	Pins 2& 3 closed
	Parallel port IRQ7 select	W4	Pins 2 & 3 closed
	Parallel port IRQ5 select	W4	Pins 1 & 2 closed

PARALLEL PORT ADDRESS SELECTION
Setting	W2	W3
LPT1 (378h)	Pins 1 & 2 closed	Pins 2 & 3 closed
LPT2 (278h)	Pins 2 & 3 closed	Pins 2 & 3 closed
LPT3 (3BCh)	Pins 2 & 3 closed	Pins 1 & 2 closed
Disabled	Pins 1 & 2 closed	Pins 1 & 2 closed
