Card Type	Video card
Video Chip Set	Unidentified
Highest Resolution Supported	1024 x 768
Maximum Video Memory	1MB DRAM
Data Bus	16-bit ISA
Video Types Supported	XVGA

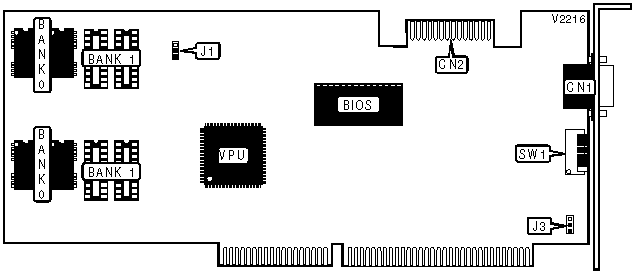

CONNECTIONS
Function	Label	Function	Label
15-pin analog video port	CN1	Auxiliary video connector	CN2

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	DRAM chips installed	J1	Pins 1 & 2 closed
	VRAM chips installed	J1	Pins 2 & 3 closed
»	IRQ 2/9 disabled	J3	Pins 2 & 3 closed
	IRQ 2/9 enabled	J3	Pins 1 & 2 closed
»	Factory configured - do not alter	SW1/3	On
»	Automatic detection of RAM bus width	SW1/4	On
	8-bit RAM bus width	SW1/4	Off
»	Automatic detection of ROM bus width	SW1/5	On
	8-bit ROM bus width	SW1/5	Off
»	ROM address is C0000 - C7FFFh	SW1/6	On
	ROM address is C0000 - DFFFFh	SW1/6	Off

MONITOR TYPE SELECTION
Type		SW1/1	SW1/2
»	Super Multi-frequency	On	On
	Multi-frequency	Off	On
	Super VGA	On	Off
	IBM PS/2 & 8514	Off	Off

DRAM CONFIGURATION
Size	Bank 0	Bank 1
512KB	(4) 256K x 4	None
1MB	(4) 256K x 4	(4) 256K x 4

MISCELLANEOUS TECHNICAL NOTE

Note: This board can be upgraded to VRAM memory chips.
