Card Type	Video card
Video Chip Set	Cirrus Logic 5426
Highest Resolution Supported	1280 x 1024
Maximum Video Memory	1MB DRAM
Data Bus	32-bit VESA Local Bus
Video Types Supported	XVGA

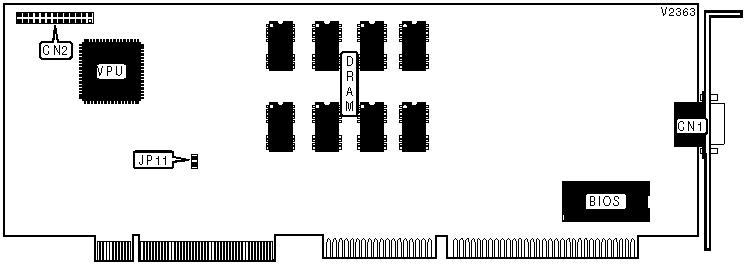

CONNECTIONS
Function	Label	Function	Label
15-pin video analog port	CN1	VGA pass-thru connector	CN2

USER CONFIGURABLE SETTINGS
Function	Label	Position
IRQ 2/9 enabled	JP11	Closed
IRQ 2/9 disabled	JP11	Open
