Card Type	Video card
Video Chip Set	Unidentified
Highest Resolution Supported	720 x 348
Maximum Video Memory	64KB RAM (Location unidentified)
Data Bus	8-bit ISA
Video Types Supported	CGA

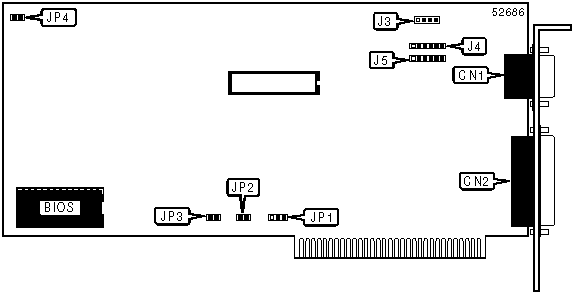

CONNECTIONS
Function	Label	Function	Label
9-pin digital video port	CN1	Parallel port	CN2

USER CONFIGURABLE SETTINGS
Function		Label	Position
	Printer disabled	JP2	Closed
	Printer enabled	JP2	Open
»	Factory configured - do not alter	JP4	Unidentified
»	Factory configured - do not alter	J3	Unidentified
»	Factory configured - do not alter	J4	Unidentified
»	Factory configured - do not alter	J5	Unidentified

DISPLAY CONFIGURATION
Primary Display	JP1	JP3
Color	Pins 2 & 3 closed	Open
Princeton HX-12 color monitor	Pins 2 & 3 closed	Closed
Mono	Open	Open

MISCELLANEOUS TECHNICAL NOTES

Note: This card will not work in a system with a bus speed faster than 8MHz.
