FRONT RANGE COMPUTER CORPORATION
MAROON BELLS
|
Card Type |
Video card |
|
Video Chip Set |
Trident |
|
Maximum Video Memory |
2MB VRAM |
|
Video Types Supported |
XVGA |
|
Highest Resolution Supported |
1600 x 1280 |
|
Data Bus |
32-bit VESA Local Bus |
|

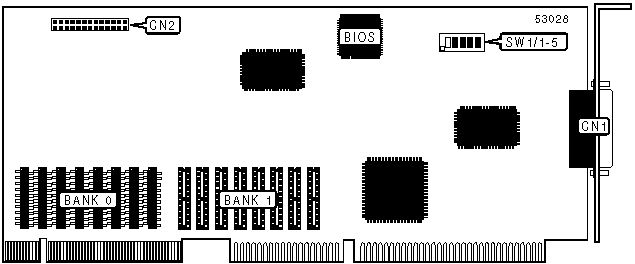

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
15-pin analog video port |
CN1 |
Feature connector |
CN2 |
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
BIOS - enabled |
SW1/1 |
On |
|
BIOS - disabled |
SW1/1 |
Off | |
|
VIDEO MEMORY CONFIGURATION (DRAM/VRAM) | ||||
|
Size |
Bank 0 |
Bank 1 |
Bank 2 |
Bank 3 |
|
1MB |
(4) 256KB x 8 ZIP |
None |
None |
None |
|
2MB |
(4) 256KB x 8 ZIP |
(4) 256KB x 8 ZIP |
None |
None |
|
ZERO-WAIT STATE SELECTION | |||
|
Setting |
SW1/2 |
SW1/3 | |
| » |
Enabled |
On |
On |
|
Disabled |
On |
Off | |
|
I/O ADDRESS SELECTION | |||
|
Address |
SW1/4 |
SW1/5 | |
|
280h - 28Fh, 680h - 68Fh |
On |
On | |
|
290h - 29Fh, 690h - 69Fh |
Off |
On | |
| » |
2A0h - 2Afh, 6A0h - 6Afh |
On |
Off |
|
2B0h - 2BFh, 6B0h - 6BFh |
Off |
Off | |
