Category	Video
Video Types Supported	XVGA
Video Processor	S3 86C911
Highest Resolution Supported	1024 x 768
Data Bus Type	32-bit VESA Local Bus
Memory Type	DRAM
Maximum Onboard Memory	1024KB

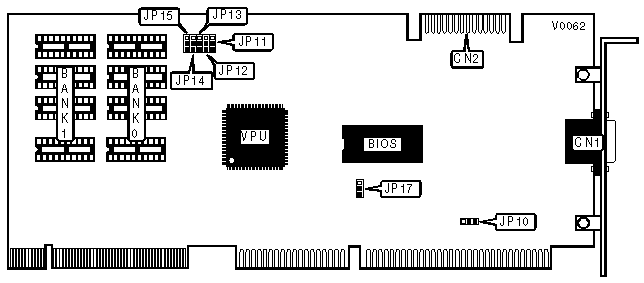

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	VESA Feature connector	CN2

RAM DAC SELECTION
Setting		JP10
»	8-bit	Pins 2 & 3 closed
	6-bit	Pins 1 & 2 closed

640 X 480 REFRESH RATE SELECTION
Rate	JP13	JP14	JP15
60Hz	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 2 & 3 closed
70Hz	Pins 1 & 2 closed	Pins 2 & 3 closed	Pins 2 & 3 closed

PAGE MODE SELECTION
Mode		JP12
»	Fast page mode (80ns VRAM)	Pins 1 & 2 closed
	Page Mode (100ns VRAM)	Pins 2 & 3 closed

800 X 600 REFRESH RATE SELECTION
Rate	JP13	JP14	JP15
60Hz	Pins 2 & 3 closed	Pins 1 & 2 closed	Pins 2 & 3 closed
70Hz	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 2 & 3 closed
56Hz	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 1 & 2 closed

1024 X 768 REFRESH RATE CONFIGURATION
Refresh	Mode	JP13	JP14	JP15
43Hz	Interlaced	Pins 1 & 2 closed	Pins 2 & 3 closed	Pins 1 & 2 closed
60Hz	Non-Interlaced	Pins 2 & 3 closed	Pins 1 & 2 closed	Pins 1 & 2 closed
70Hz	Non-Interlaced	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 1 & 2 closed

FACTORY CONFIGURED - DO NOT ALTER
Jumper	Position
JP17	Pins 1 & 2 closed

VRAM CONFIGURATION
Size	Bank 0	Bank 1	JP11
512KB	(4) 256K x 4 VRAM	None	Pins 1 & 2 closed
1024KB	(4) 256K x 4 VRAM	(4) 256K x 4 VRAM	Pins 2 & 3 closed
