Category	Video
Video Types Supported	XVGA
Video Processor	CIRRUS LOGIC GD5422
Highest Resolution Supported	1280 X 1024
Data Bus Type	16-Bit ISA
Memory Type	DRAM
Maximum Onboard Memory	1024KB

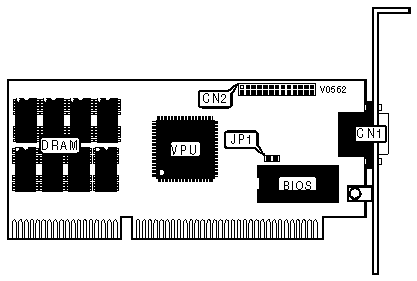

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	VGA Feature connector	CN2

WAIT STATE SELECTION
Zero Wait State		JP1
»	Enabled	Closed
	Disabled	Open
