Category	Video
Video Types Supported	XVGA
Video Processor	1280 x 1024
Highest Resolution Supported	S3/805
Data Bus Type	32-bit VESA Local Bus
Memory Type	DRAM
Maximum Onboard Memory	2MB

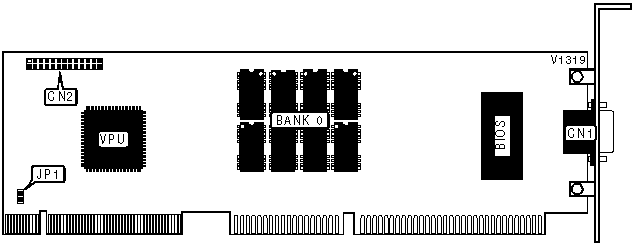

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	VGA feature connector	CN2

DRAM CONFIGURATION
Memory	Bank 0	Bank 1
1MB	(8) 256K x 4	None
2MB	(8) 256K x 4	1024K
Note: Exact location & chip size of Bank 1 is unidentified.

FACTORY CONFIGURED - DO NOT ALTER
Jumper	Position
JP1	N/A
