RELIALOGIC CORPORATION PRIVATE, LTD.
VCP940
JATON CORPORATION
JAX 8247 (PCI-47)
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
Trident 9440AGI |
|
Highest Resolution Supported |
1280 x 1024 |
|
Data Bus Type |
32-bit PCI |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
2MB |
|

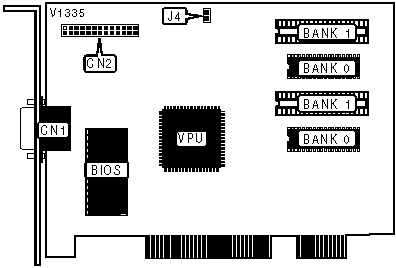

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
15-pin analog video port |
CN1 |
VGA feature connector |
CN2 |
|
MONITOR SCAN RATE SELECTION | ||
|
» Rate |
J4 | |
| » |
<48.7KHz |
Closed |
|
48.7KHz |
Open | |
|
DRAM CONFIGURATION | ||
|
Memory |
Bank 0 |
Bank 1 |
|
1MB |
(2) 256K x 16 |
NONE |
|
2MB |
(2) 256K x 16 |
(2) 256K x 16 |
