KASAN ELECTRONICS CO., LTD.
WINX
|
 Category  |
 Video  |
|
 Video Types Supported  |
 XVGA  |
|
 Video Processor  |
 Tseng Labs ET-4000/32P  |
|
 Highest Resolution Supported  |
 1280 x 1024  |
|
 Data Bus Type  |
 32-bit PCI  |
|
 Memory Type  |
 DRAM  |
|
 Maximum Onboard Memory  |
 2MB  |
|

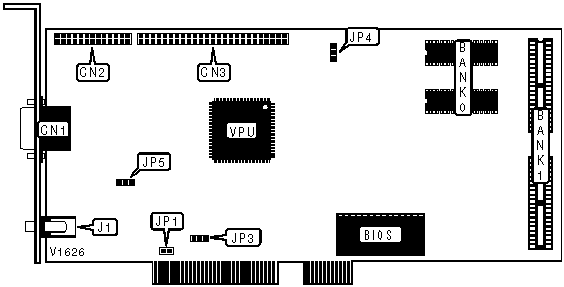

 CONNECTIONS  | |||
|
 Purpose  |
 Location  |
 Purpose  |
 Location  |
|
 15-pin analog video port  |
 CN1  |
 Imagne port connector  |
 CN3  |
|
 Feature connector  |
 CN2  |
 3D jack  |
 J1  |
|
 INTERRUPT CONFIGURATION  | ||
|
 IRQ 2/9  |
 JP1  | |
| » |
 Enabled  |
 Open  |
|
 Disabled  |
 Closed  | |
|
 PCI ID DETECTION CONFIGURATION  | ||
|
 Setting  |
 JP3  | |
| » |
 Detected at start up  |
 Pins 1 & 2 closed  |
|
 Detected by ROM BIOS  |
 Pins 2 & 3 closed  | |
|
 MEMORY CLOCK CONFIGURATION  | ||
|
 Setting  |
 JP4  | |
| » |
 50MHz  |
 Pins 1 & 2 closed  |
|
 44.7MHz  |
 Pins 2 & 3 closed  | |
|
 BASE I/O ADDRESS SELECTION  | ||
|
 Address  |
 JP5  | |
| » |
 258h, 259h  |
 Pins 2 & 3 closed  |
|
 358h, 359h  |
 Pins 1 & 2 closed  | |
|
 DRAM CONFIGURATION  | ||
|
 Size  |
 Bank 0  |
 Bank 1  |
|
 1MB  |
 (2) 256K x 16  |
 NONE  |
|
 2MB  |
 (2) 256K x 16  |
 (2) 256K x 16  |
|
 MISCELLANEOUS TECHNICAL NOTE  |
|
 The exact location of pin 1 on JP3, JP4 & JP5 is unidentified by the manufacturer.  |
