Leutron vision
picport-mono, picport-stereo
|
Card Type |
Video capture card |
|
Video Chip Set |
Unidentified |
|
Maximum Video Memory |
None |
|
Video Types Supported |
Monochrome |
|
Highest Resolution Supported |
2048 x 2048 |
|
Formats Supported |
Monochrome images from CCIR, RS170 |
|
Data Bus |
32-bit PCI |
|

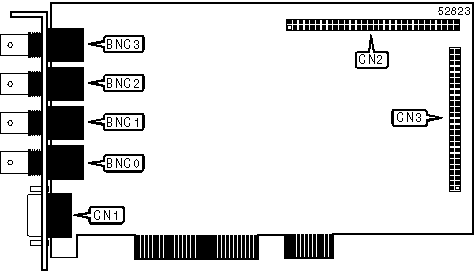

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
15-pin connector - universal camera |
CN1 |
RG-58A/U 50ohm coaxial - video in 1 |
BNC1 |
|
60-pin connector - proprietary pixelbus |
CN2 |
RG-58A/U 50ohm coaxial - video in 2 |
BNC2 |
|
50-pin connector - proprietary commandbus |
CN3 |
RG-58A/U 50ohm coaxial - video in 3 |
BNC3 |
|
RG-58A/U 50ohm coaxial - video in 0 |
BNC0 | ||
