Card Type	Video card
Video Chip Set	Tseng Labs
Maximum Video Memory	4MB
Data Bus	32-bit PCI
Video Types Supported	VGA
Highest Resolution Supported	1600 x 1200

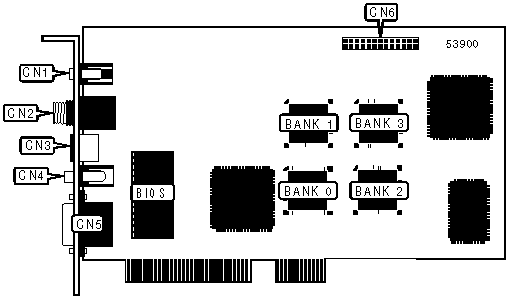

CONNECTIONS
Function	Label	Function	Label
Composite video in	CN1	Speaker out	CN4
Cable or TV antenna in	CN2	15-pin video analog video port	CN5
S-video in	CN3	Feature connector	CN6

VIDEO MEMORY CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
1MB	MD908	None	None	None
2MB	MD908	MD908	None	None
2.25MB	MD909	MD909	None	None
2.5MB	MD910	MD910	None	None
4MB	MD908	MD908	MD908	MD908
Note: MD908 = 1MB. MD909 = 1.125MB. MD910 = 1.25MB.
