Card Type	Video card
Video Chip Set	Tseng Labs
Maximum Video Memory	2MB DRAM
Video Types Supported	Monochrome, CGA, EGA, VGA, Hercules
Highest Resolution Supported	1280 x 1024
Data Bus	32-bit PCI

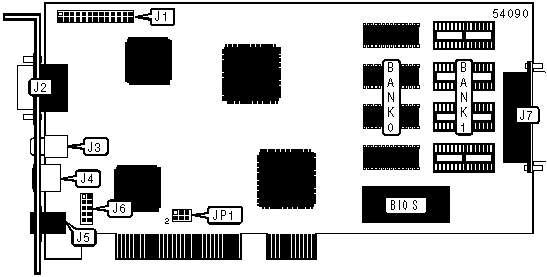

CONNECTIONS
Function	Label	Function	Label
Feature connector	J1	Phone jack	J5
15-pin analog video port	J2	Video in	J6
Composite video in	J3	25-pin tuner board connector	J7
S-video in	J4

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	(4) 256KB	None
2MB	(4) 256KB	(4) 256KB

PCI INTERRUPT SELECTION
Setting		JP1
»	INTA	Pins 1 & 2 closed
	INTB	Pins 5 & 6 closed
	INTC	Pins 4 & 6 closed

CONNECTIONS
Function	Label	Function	Label
25-pin tuner board connector	J1	TV Antenna out	J2
