Card Type	Video Card
Video Chip Set	Trident
Maximum Video Memory	2MB EDO DRAM
Video Types Supported	VGA
Highest Resolution Supported	1600 x 1200
Data Bus	32 bit PCI

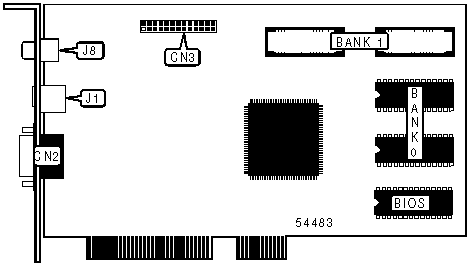

CONNECTIONS
Function	Label	Function	Label
15-pin analog video port	CN2	S-video in	J1
Feature connector	CN3	Composite video in	J8

VIDEO MEMORY CONFIGURATION (EDO DRAM)
Size	Bank0	Bank1
1MB	256KB x 16	None
2MB	256KB x 16	256KB x 16
