LEADTEK RESEARCH, INC.
WINFAST 3D S800 AGP
|
 Card Type  |
 Video card  |
|
 Video Chip Set  |
 Mpact  |
|
 Maximum Video Memory  |
 Unidentified  |
|
 Video Types Supported  |
 VGA  |
|
 Highest Resolution Supported  |
 1600 x 1200  |
|
 Data Bus  |
 AGP  |
|

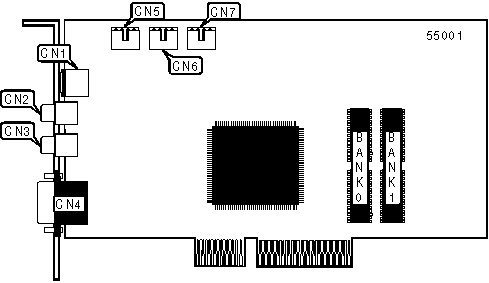

 CONNECTIONS  | |||
|
 Function  |
 Label  |
 Function  |
 Label  |
|
 S-Video out  |
 CN1  |
 Auxiliary audio in  |
 CN5  |
|
 Composite video out  |
 CN2  |
 Audio in - CD-ROM  |
 CN6  |
|
 SPDIF out  |
 CN3  |
 Audio out  |
 CN7  |
|
 VGA port  |
 CN4  | ||
