J-MARK COMPUTER CORPORATION
J-2775
|
Card Type |
Video card |
|
Video Chip Set |
S3 |
|
Maximum Video Memory |
2MB DRAM |
|
Video Types Supported |
Monochrome, CGA, EGA, VGA, XVGA |
|
Highest Resolution Supported |
1600 x 1200 |
|
Data Bus |
32-bit PCI |
|

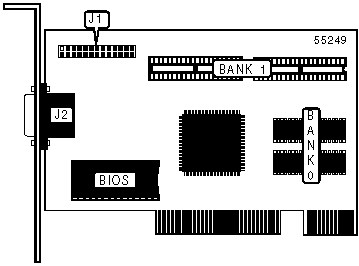

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Feature connector (VGA) |
J1 |
VGA connector |
J2 |
|
DRAM CONFIGURATION | ||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
(2) 256KB x 16 |
None |
|
2MB |
(2) 256KB x 16 |
(2) 256KB x 16 |
