Category	Video
Video Types Supported	Monochrome/XVGA
Video Processor	OTI077
Highest Resolution Supported	1280 X 1024
Data Bus Type	16-bit ISA
Memory Type	DRAM
Maximum Onboard Memory	1024KB

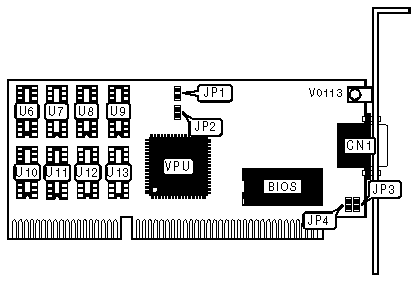

CONNECTIONS
Purpose	Location
15-pin analog video port	CN1

REFRESH MODE CONFIGURATION
Mode		JP1
»	VGA	Open
	VESA	Closed

VIDEO INTERFACE CONFIGURATION
Mode		JP2
»	Non-Interlaced	Open
	Interlaced	Closed

VIDEO MONITOR TYPE SELECTION
Type	JP3
Color	Open
Monochrome	Closed

FACTORY CONFIGURED - DO NOT ALTER
Jumper	Position
JP4	Open

DRAM CONFIGURATION
Size	U9, U13	U8, U12	U6, U7. U10, U11
256KB	(2) 44256	None	None
512KB	(2) 44256	(2) 44256	None
1024KB	(2) 44256	(2) 44256	(2) 44256
