MICRONICS COMPUTERS, INC.
MVC8000LB
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
ATI68800 |
|
Highest Resolution Supported |
1280 x 1024 |
|
Data Bus Type |
32-bit VESA Local Bus |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
2048KB |
|

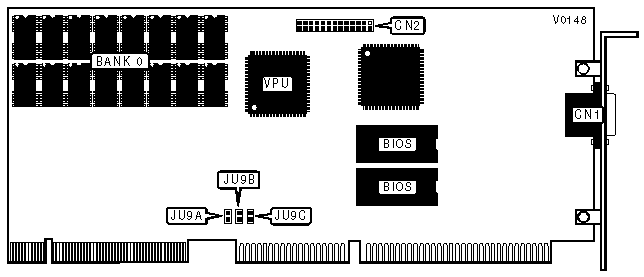

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
15-pin analog video port |
CN1 |
VGA feature connector |
CN2 |
|
VIDEO INTERRUPT SELECTION | ||||
|
IRQ |
JU9A |
JU9B |
JU9C | |
| » |
2 |
Closed |
Open |
Open |
|
3 |
Open |
Closed |
Open | |
|
5 |
Open |
Open |
Closed | |
