Category	Video
Video Types Supported	XVGA
Video Processor	Media Vision
Highest Resolution Supported	1280 x 1024
Data Bus Type	32-bit VESA Local Bus
Memory Type	VRAM
Maximum Onboard Memory	2.25MB

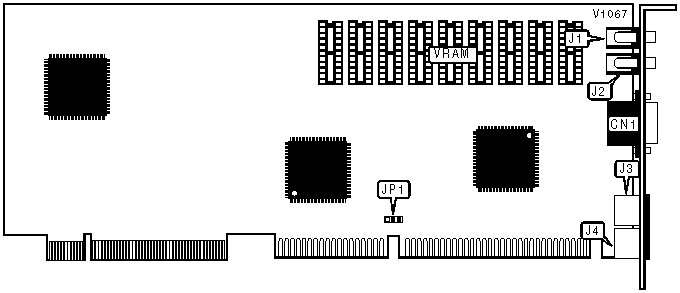

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	S-video connector	J3
Composite video in	J1	S-video connector	J4
Composite video out	J2

ON BOARD VGA CONFIGURATION
Setting		JP1
»	Enabled	Pins 1 & 2 closed
	Disabled	Pins 2 & 3 closed

MISCELLANEOUS TECNICAL NOTE

Note: Exact VRAM configuration is unidentified.
