Category	Video
Video Types Supported	XVGA
Video Processor	Cirrus Logic
Highest Resolution Supported	1280 x 1024
Data Bus Type	32-bit VESA local bus
Memory Type	DRAM
Maximum Onboard Memory	1MB

CONNECTIONS

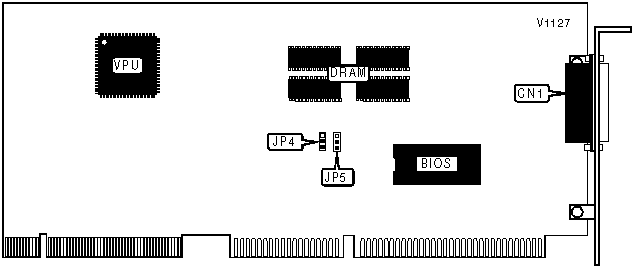

Purpose	Location
15-pin analog video port	CN1

INTERRUPT SELECTION
IRQ9		JP5
»	Enabled	Pins 1 & 2 closed
	Disabled	Pins 2 & 3 closed

FACTORY CONFIGURED SETTINGS
Jumper	Setting
JP4	Pins 1 & 2 closed
Note: JP4 controls wait state, settings unidentified
