MIRO COMPUTER PRODUCTS, INC.
MIROCRYSTAL 16SI/PCI
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
S3 |
|
Highest Resolution Supported |
1280 x 1024 |
|
Data Bus Type |
32-bit PCI |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
2MB |
|
CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
15-pin analog video port |
CN1 |
VESA feature connector |
CN2 |
|
MONITOR TYPE SELECTION | ||||
|
Type |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
|
35KHz Multi-frequency |
On |
On |
On |
Off |
|
48KHz Multi-frequency |
Off |
Off |
On |
Off |
|
58KHz Multi-frequency |
On |
Off |
Off |
Off |
|
64-85KHz Multi-frequency |
Off |
Off |
Off |
Off |
|

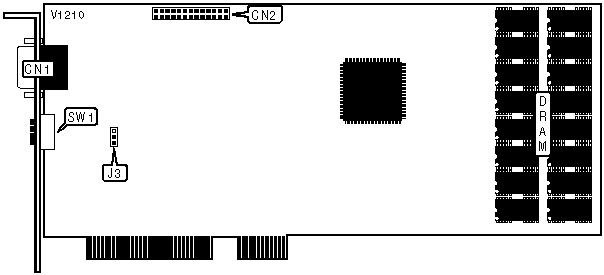

16SI/PCI SCREEN CONFIGURATION | ||
|
Setting |
J3 | |
| » |
Single-screen |
Pins 2 & 3 closed |
|
Dual-screen/multiscreen |
Pins 1 & 2 closed | |
