MIRO COMPUTER PRODUCTS, INC.
MIROCRYSTAL 20SV/VL
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
S3 |
|
Highest Resolution Supported |
1280 x 1024 |
|
Data Bus Type |
32-bit VESA Local Bus |
|
Memory Type |
VRAM |
|
Maximum Onboard Memory |
2MB |
|

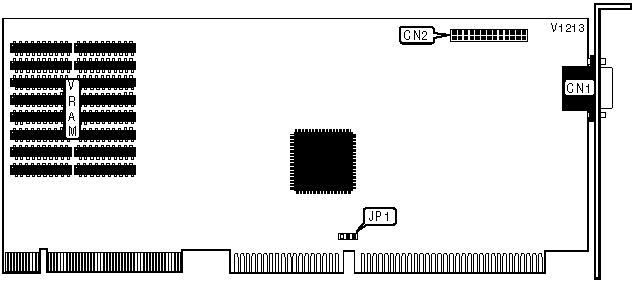

CONNECTIONS |
|||
|
Purpose |
Location |
Purpose |
Location |
|
15-pin analog video port |
CN1 |
VESA feature connector |
CN2 |
|
VESA CLOCK SPEED SELECTION |
||
|
Speed |
JP1 |
|
|
» |
£ 33MHz |
Pins 2 & 3 closed |
|
|
>33MHz |
Pins 1 & 2 closed |
