Category	Video
Video Types Supported	XVGA
Video Processor	S3, Inc.
Highest Resolution Supported	1280 X 1024
Data Bus Type	32-bit PCI
Memory Type	DRAM
Maximum Onboard Memory	2MB

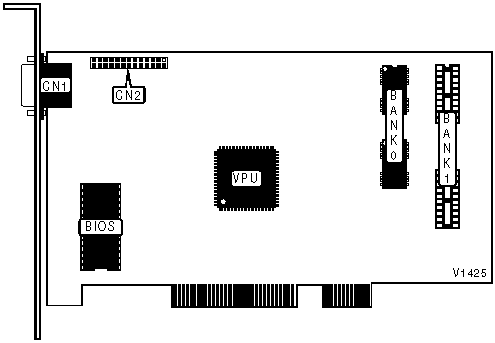

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	VGA feature connector	CN2

DRAM CONFIGURATION
Memory	Bank 0	Bank 1
1MB	(2) 1024K X 4	NONE
2MB	(2) 1024K X 4	(2) 1024K X 4
