MIRO COMPUTER PRODUCTS, INC.
MIROCRYSTAL 20SD TWIN/VL
|
Category |
Video |
|
Video Types Supported |
XVGA |
|
Video Processor |
S3 Vision864 |
|
Highest Resolution Supported |
1408 x 1024 |
|
Data Bus Type |
32-bit VESA Local Bus |
|
Memory Type |
DRAM |
|
Maximum Onboard Memory |
2MB (4MB when daughter board is installed) |
|

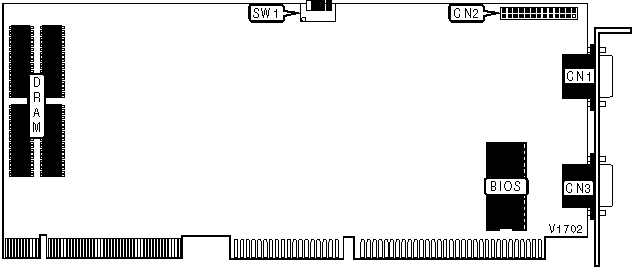

CONNECTIONS | |||
|
Purpose |
Location |
Purpose |
Location |
|
15-pin analog video port |
CN1 |
15-pin analog video port (Daughter board) |
CN3 |
|
VESA feature connector |
CN2 | ||
|
SCREEN CONFIGURATION | |
|
Setting |
SW1/2 |
|
Dual-screen (Booting on daughter board) |
Off |
|
Single-screen (Booting on main board) |
On |
|
FACTORY CONFIGURED - DO NOT ALTER | |
|
Switch |
Position |
|
SW1/1 |
Unidentified |
|
SW1/3 |
Unidentified |
|
SW1/4 |
Unidentified |
|

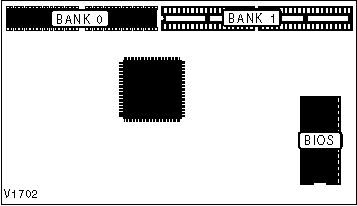

DRAM CONFIGURATION (DAUGHTER BOARD) | ||
|
Size |
Bank 0 |
Bank 1 |
|
1MB |
(2) 256K x 16 |
NONE |
|
2MB |
(2) 256K x 16 |
(2) 256K x 16 |
