Card Type	Video card
Video Processor	C & T 82C452
Maximum Onboard Memory	512KB DRAM
Data Bus	16-bit ISA
Video Types Supported	VGA
Highest Resolution Supported	800 x 600

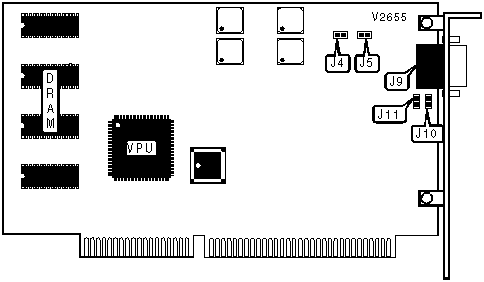

CONNECTIONS
Function	Label
15-pin analog VGA port	J9

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Factory configured - do not alter	J4	Unidentified
»	Factory configured - do not alter	J5	Unidentified
»	IRdisabled	J10	Open
	IRenabled	J10	Closed
»	Card uses 16-bit data transfers	J11	Open
	Card uses 8-bit data transfers	J11	Closed
