Card Type	Video card
Video Chip Set	S3, Inc.
Maximum Video Memory	4MB VRAM
Video Types Supported	XVGA
Highest Resolution Supported	1600 x 1200
Data Bus	64-bit PCI

CONNECTIONS
Function	Label	Function	Label

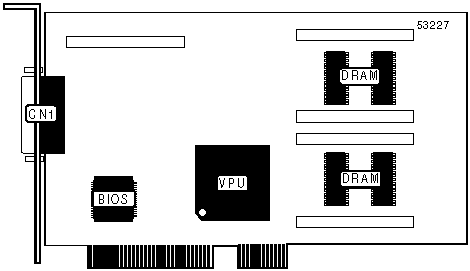

15-pin analog video port	CN1

VIDEO MEMORY CONFIGURATION
Size	Bank 0
2MB	(4) 256KB
Note: The Reality 772 can be upgraded to 4MB of Video Memory by installing the Daughter card, however orientation of the daughter card connections is unidentified.
