Card Type	Video card
Video Chip Set	S3, Inc.
Maximum Video Memory	1MB VRAM
Video Types Supported	VGA, XVGA, EGA, CGA, Monochrome
Highest Resolution Supported	1280 x 1024
Data Bus	16-bit ISA

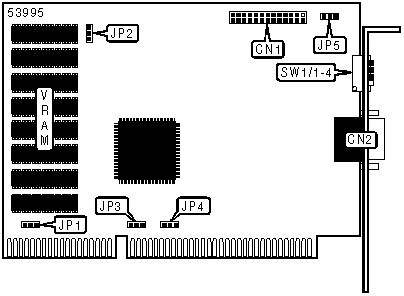

CONNECTIONS
Function	Label	Function	Label
VGA feature connector	CN1	15-pin analog video port	CN2

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Turbo disabled	SW1/3	Off
	Turbo enabled	SW1/3	On
»	Factory configured - do not alter (VRAM)	JP1	Unidentified
»	Factory configured - do not alter (engine speed)	JP2	Unidentified
»	IRQ9 interrupt disabled	JP4	Off
	IRQ9 interrupt enabled	JP4	On
»	Factory configured - do not alter (monitor ID)	JP5	Unidentified

WAIT STATE SELECTION
Setting		JP3
»	Disabled	Off
	Enabled	On
Note: SW/3 must be set to the on position to enable zero wait state.

MONITOR CONFIGURATION SELECTION
Setting	SW1/1	SW1/2
VGA,XVGA	Off	Off
Multi-Sync, 38KHz	Off	On
Multi-Sync, 48KHz	On	Off
Multi-Sync, 57KHz	On	On
