MAXLOGIC
MAXEGA
|
Card Type |
Video card |
|
Video Chip Set |
Unidentified |
|
Maximum Video Memory |
256KB |
|
Video Types Supported |
MDA, CGA, EGA |
|
Highest Resolution Supported |
800 x 600 |
|
Data Bus |
8-bit ISA |
|

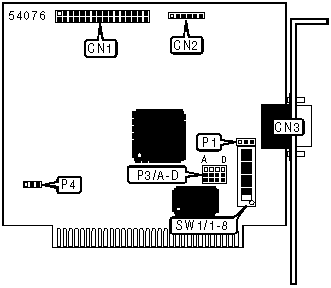

CONNECTIONS | |||
|
Function |
Label |
Function |
Label |
|
Feature connector |
CN1 |
9-pin digital video port |
CN3 |
|
Light pen connector |
CN2 | ||
|
USER CONFIGURABLE SETTINGS | |||
|
Function |
Label |
Position | |
| » |
EGA monitor |
P1 |
Pins 1& 2 closed |
|
Monochrome or CGA monitor |
P1 |
Pins 2 & 3 closed | |
| » |
Expansion slot 8 disabled |
P3/C |
Pins 1& 2 closed |
|
Expansion slot 8 enabled |
P3/C |
Pins 2 & 3 closed | |
| » |
Oscillator enabled |
P4 |
Pins 1 & 2 closed |
|
Oscillator disabled |
P4 |
Pins 2 & 3 closed | |
| » |
Factory configured - do not alter |
SW1/7 |
Off |
|
AUTOMODE SELECTION | ||||
|
Setting |
P3/B |
P3/D |
SW1/8 | |
| » |
Automode disabled |
Pins 2 & 3 closed |
Pins 1 & 2 closed |
Off |
|
Automode enabled |
Pins 1 & 2 closed |
Pins 2 & 3 closed |
On | |
|
MONITOR CONFIGURATION SELECTION | |||||||
|
Mode |
SW1/1 |
SW1/2 |
SW1/3 |
SW1/4 |
SW1/5 |
SW1/6 | |
| » |
EGA monitor (Hi res EGA mode) |
On |
Off |
Off |
On |
Off |
Off |
|
Monochrome monitor (EGA mode) |
On |
On |
Off |
On |
Off |
Off | |
|
EGA monitor (Low res EGA mode) |
Off |
Off |
Off |
On |
Off |
Off | |
|
CGA monitor (Low res EGA mode) |
On |
On |
On |
Off |
Off |
Off | |
|
CGA monitor (40x25 low res mode) |
Off |
On |
On |
Off |
Off |
Off | |
|
EGA monitor (CGA mode) |
On |
Off |
Off |
On |
Off |
On | |
|
CGA monitor (CGA mode |
On |
On |
On |
Off |
Off |
On | |
|
EGA monitor (Hercules mode) |
On |
Off |
Off |
On |
On |
Off | |
|
Monochrome monitor (Hercules mode) |
On |
On |
Off |
On |
On |
Off | |
|
SERIAL PORT ADDRESS SELECTION | ||
|
Setting |
P3/A | |
|
2XXh |
Pins 1 & 2 closed | |
| » |
3XXh |
Pins 2 & 3 closed |
