Card Type	Video card
Chip Set	S3
Maximum Onboard Memory	4MB
Maximum Resolution	1024 x 768
Data Bus	32-bit PCI
Card Size	Full-length, full-height card

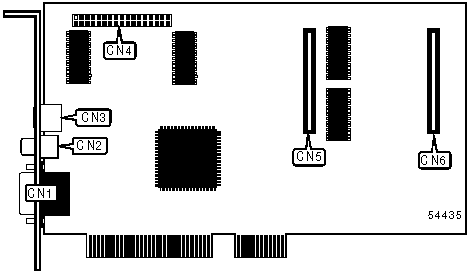

CONNECTIONS
Function	Label	Function	Label
Video port	CN1	LPB-Connector/VESA-Feature-Connector	CN4
Composite video output	CN2	Mother to daughter board connector	CN5
S-Video output	CN3	Mother to daughter board connector	CN6

CONNECTIONS
Function	Label	Function	Label
Daughter to mother board connector	CN1	Daughter to mother board connector	CN2

USER CONFIGURABLE SETTINGS
Function		SW1/A	SW1/B	SW1/C	SW1/D	SW1/J
»	Upgrade enabled	Off	Off	Off	Off	Off
	Upgrade disabled	On	On	On	On	On
Note: The functions of SW1/E, SW1/F, SW1/G, and SW1/H are unidentified.
